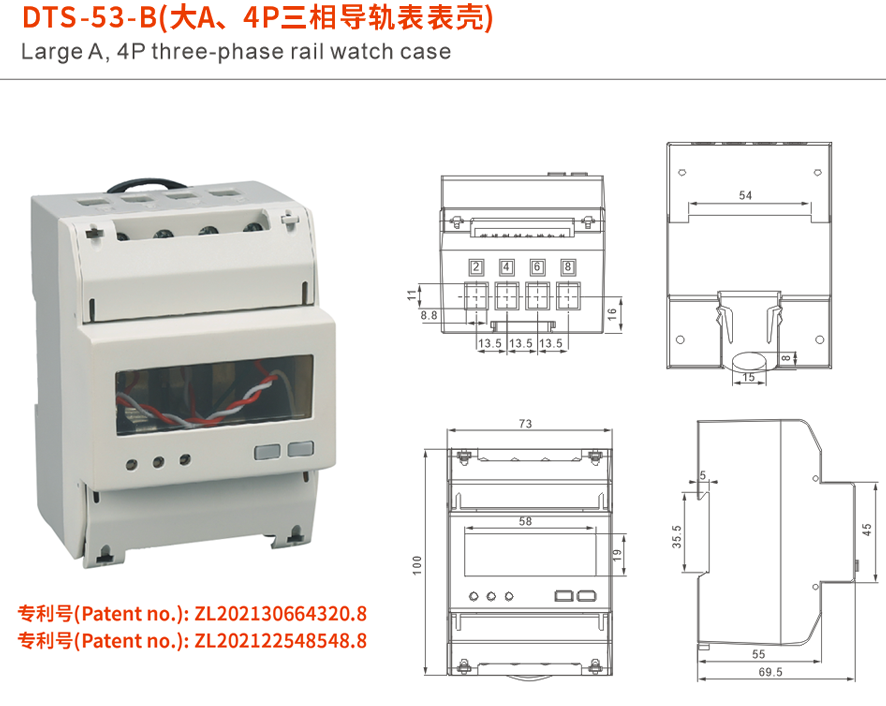

DTS-53-B（大A、4P三相導軌表表殼）
1540 2022-04-13
技術參數
◎規格：壓接式端鈕盒，大A(2mm銅片)
◎脈沖信號線：11-18，21-28接線端子
◎電流配置：20(80)A帶16組輔助端口
◎說明：原創設計，采用電能表接線方式，方便快捷，成本大幅
度降低，防塵防潮設計，另可配各種阻值互感器。
TECHNICAL PARAMETERS
◎Specifications: crimp-type terminal box, large A (2.0mm sheet copper)
◎pulse signal lines: 11-18,21-28 terminals
◎Current configuration: 20(80) A with 16 sets of auxiliary ports
◎Note: with original design, it uses energy meter wiring method which
is convenient and cost saving, dust-proof design can be equipped
with a variety of resistance shunt.
