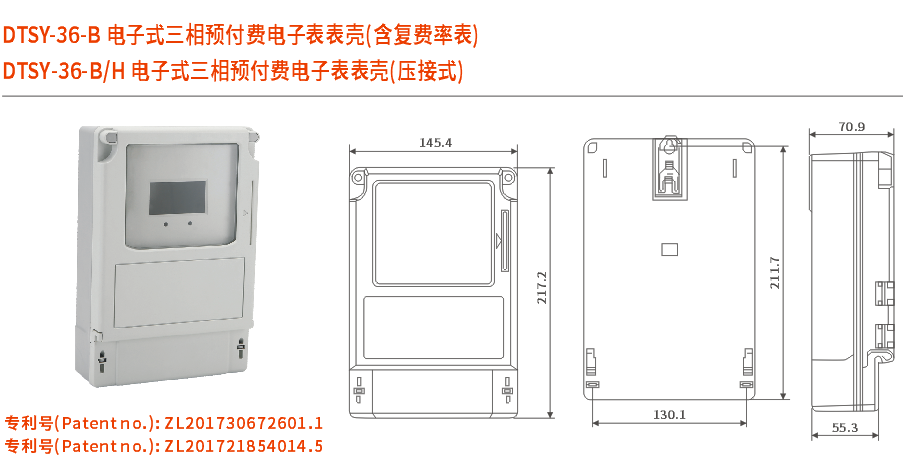

技術參數

◎規格：端鈕盒銅條，小A(7×9)、中A(9×11、10×12)、

   大A(11×13)

◎電流配置：三相四線1.5(6)A帶10個輔助端口

                     三相四線10(40)A帶10個輔助端口

                     三相四線20(100)A帶10個輔助端口

                     另有三相三線小電流端口可選配

◎說明：采用最新國網標準拆分式端鈕盒及塑料鉛封設計，外觀

    高端大氣，另有復費率表型可供選擇。

TECHNICAL PARAMETERS

◎Specifications: copper bar of terminal box, small A(7×19), middle A

   (9×11,10×12), large A(11×13)

◎Current configuratlon: three-phase four-wire 1.5(6) A with 10 auxiliary ports

                          three-phase four-with 10 (40) A with 10 auxiliary ports

                          three-phase four-with 20 (100) A with 10 auxiliary ports

                          three-phase three-with with low current port is optional

◎Note: lt designed by the latest standard split terminal box and plastic

   seal of state grid, the appearance is high-end and beautiful, there

   is also multi-rate meter for choice.
